1, 3, 6,9 Single Color Inground Light

1, 3, 6,9 Single Color In-ground Light

1 - 4

<

>

Products Information

Single Color LED In-ground Lights

1*1W-LED series:

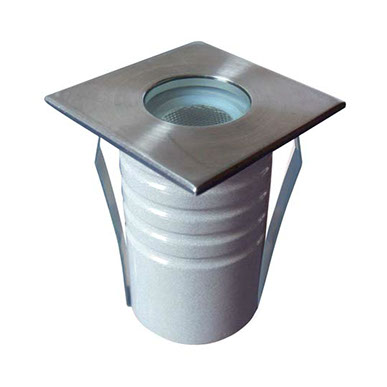

IN-I-2E01: 1x1W, W/WW/R/G/B/Y, (Square flat cover)

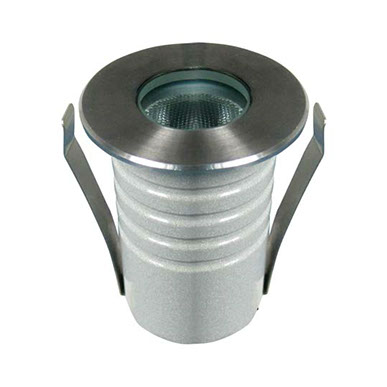

IN-I-2C01: 1x1W, W/WW/R/G/B/Y, (Round flat cover)

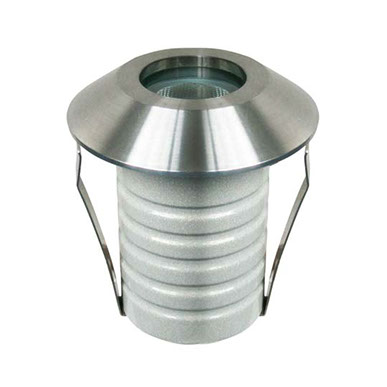

IN-I-2B01: 1x1W, W/WW/R/G/B/Y, (Round big Convex cover)

IN-I-2D01 1x1W, W/WW/R/G/B/Y, (Round small Convex cover)

IN-I-2E03: 3x1W, W/WW/R/G/B/Y, (Round flat cover)

IN-I-2E06: 6x1W, W/WW/R/G/B/Y, (Round flat cover)

IN-I-2E09: 9x1W, W/WW/R/G/B/Y, (Round flat cover)

1*3W-LED series:

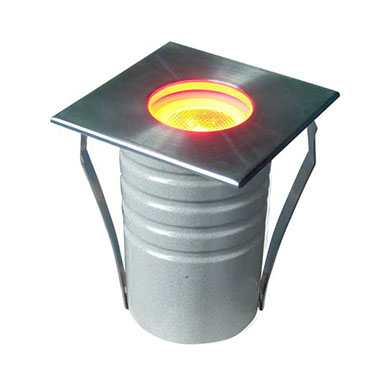

IN-I-2E31: 1x3W, W/WW/R/G/B/Y, (Square flat cover)

IN-I-2C31: 1x3W, W/WW/R/G/B/Y, (Round flat cover)

IN-I-2B31: 1x3W, W/WW/R/G/B/Y, (Round big Convex cover)

IN-I-2D31: 1x3W, W/WW/R/G/B/Y, (Round small Convex cover)

IN-I-2E33: 3x3W, W/WW/R/G/B/Y, (Round flat cover)

IN-I-2E36: 6x3W, W/WW/R/G/B/Y, (Round flat cover)

IN-I-2E39: 9x3W, W/WW/R/G/B/Y, (Round flat cover)

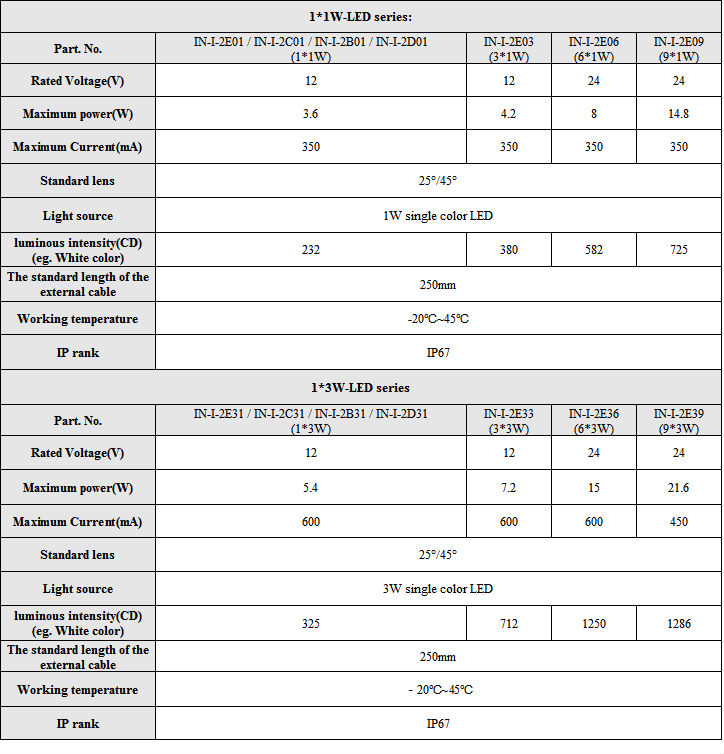

Technical parameters

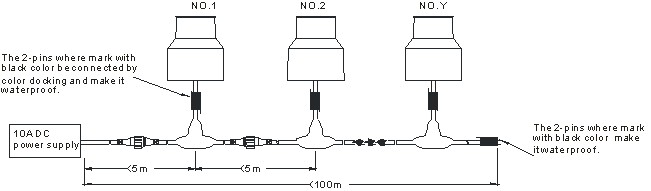

Connection interface:

2 pin black Rubber wire

Dimension diagram

1*1W&1*3W (Square flat cover) (IN-I-2E01, IN-I-2E31)

1*1W&1*3W (Round flat cover) (IN-I-2C01, IN-I-2C31)

1*1W&1*3W (Round big Convex cover) (IN-I-2B01, IN-I-2B31)

1*1W&1*3W (Round small Convex cover) (IN-I-2D01, IN-I-2D31)

3*1W&3*3W (Round flat cover) (IN-I-2E03, IN-I-2E33)

6*1W&6*3W RGB (Round flat cover) (IN-I-2E06, IN-I-2E36)

9x1W&9*2W (Round flat cover) (IN-I-2E09, IN-I-2E39)
